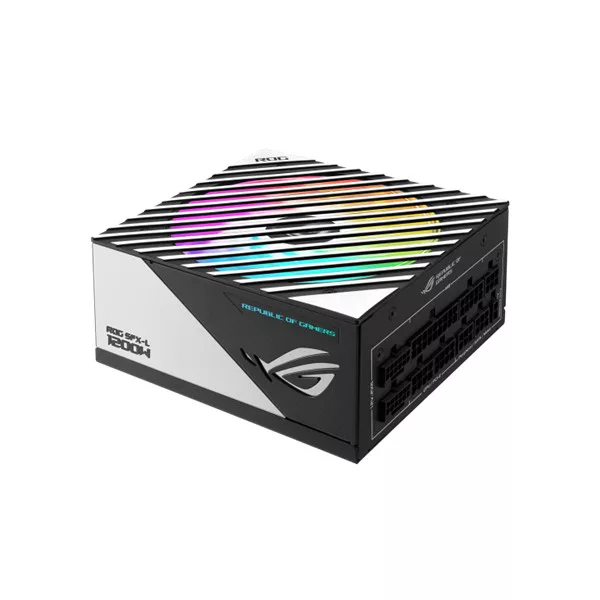

ASUS Tápegység ROG LOKI 1200W 80+ Titanium moduláris, Gen 5.1

Intel Form Factor

SFX-L

PFC Type

Active PFC

ATX Standard

ATX 3.1

Dimensions

125 x 125 x 63.5 mm

Efficiency

80Plus Titanium

MTBF

>120,000 hrs @ 25°C

Protection Features

OPP/OVP/UVP/SCP/OCP/OTP

Hazardous Materials

ROHS

AC Input Range

100-240Vac

DC Output Voltage

+3.3V +5V +12V -12V +5Vsb

Maximum Load

20A 20A 100A 0.8A 3A

Combined Load

110W 110W 1200W 9.6W 15W

Total Output

1200W

Cable Connectors

MB 24/20-pin x 1
CPU 4+4-pin x 2
PCI-E 16-pin x 2 (both PSU & component side)
PCI-E 8-pin x 4
SATA x 6
PERIPHERAL x 4

Package Contents

Power Cord x 1
Motherboard Power Cable x 1 (450mm)
CPU Cable x 2 (550mm)
PCI-E Gen 5.1 16-pin Cable x 2 (450mm)
PCI-E (16-pin to 8-pin-8-pin) Cable x 2 (450mm)
SATA 1-to-3 Cable x 2 (300+200+100mm)
Peripheral 1-to-4 Cable x 1 (300+100+100+100mm)
Addressable RGB Cable x 1 (800mm)
User Manual x 1
ATX to SFX adapter bracket x 1

Weight

2.15 kg (single PSU)

AURA SYNC

ARGB

Cybenetics Noise Level Certification

S++

0dB Technology

Supported. The fan shuts off entirely when the PSU is under certain load
