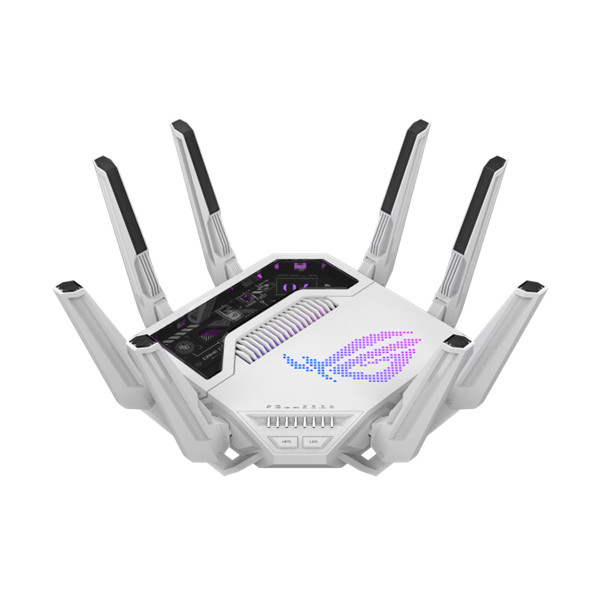

ASUS Wireless Router Tri Band BE19000 2xWAN(1x10Gbps,1x2.5Gbps) + 5xLAN(1x10Gbps,3x2.5Gbps,1x1Gbps) +2xUSB, GT-BE19000AI

Model Name

GT-BE19000AI

Network Standard

WiFi 6 (802.11ax)

WiFi 7 (802.11be)

IEEE 802.11a

IEEE 802.11b

IEEE 802.11g

IEEE 802.11n

IEEE 802.11ac

IPv4

IPv6

Product Segment

BE19000 ultimate BE performance: 1376+5764+11529 Mbps

WiFi Data Rate

2.4GHz BE: 4x4 (Tx/Rx) 4096 QAM 20/40MHz, up to 1376Mbps

5GHz BE: 4x4 (Tx/Rx) 4096 QAM 20/40/80/160MHz, up to 5764Mbp

6GHz BE: 4x4 (Tx/Rx) 4096 QAM 20/40/80/160/320MHz, up to 11529Mbp

Antenna

External antenna x 8

Transmit / Receive

2.4GHz 4x4

5GHz 4x4

6GHz 4x4

Processor

2.6GHz quad-core processor

Memory

Router: 32GB Flash and 4GB RAM AI core: 32GB Flash and 4GB RAM

Boosts Speed

OFDMA (Orthogonal Frequency Division Multiple Access) Beamforming: standard-based and universal 4096-QAM high data rate 20/40/80/160/320 MHz bandwidth

Operating Frequency

2.4 GHz

5 GHz

6 GHz

Operating Mode

Router(AiMesh router), AiMesh node, Access point

I/O Ports

1 x 10Gbps for WAN/LAN 1 x 2.5Gbps for WAN/LAN 1 x 10Gbps for LAN 3 x 2.5Gbps for LAN 1 x RJ45 10/100/1000Mbps for LAN 1 x USB 3.2 Gen1 1 x USB 2.0

Buttons

WPS Button, Reset Button, Power Switch, LED control Button

LED Indicator

WAN(Internet) x1 10G LAN x1 1G/2.5G LAN x1 WPS x1 6GHz x1 5GHz x1 2.4GHz x1 Power x1

Power Supply

AC Input: 110V~240V(50~60Hz) DC Output: 12 V with max. 5 A current

Package Content

GT-BE19000AI tri-band gaming router RJ-45 cable Power adapter Quick Start Guide Warranty card

Product Weight (g)

2000 g

Product Dimensions

350.41 x 350.41 x 220.6 mm

AiMesh

AiMesh

• Primary AiMesh Router

• AiMesh Node

Game

Mobile Game Mode

Gear Accelerator

ROG_First

OpenNAT (Game Profile)

Gaming Port

Gaming Network

Parental Control

"Allow you to block access to unwanted websites and apps."

Web & Apps Filters

Time Scheduling

Reward

Parental Control Customized Internet Schedule

• Maximum Parental Control Profile : 64

• Maximum Parental Control Content Filter Rule : 64

Guest Network

"The Guest Network provides Internet connection for guests but restricts access to your local network."

"You can create additional networks for different purposes, these networks are separate from the main network domain, to provide enhanced security, and create comprehensive network environment with customized settings."

Support Guest Network Pro

• Maximum Guest Network Rule : 2.4 GHz + 5 GHz : 5

Guest Network Connection time limit

Guest Network Encryption : Open system, WPA/WPA2/WPA3 Personal

Security

AiProtection

VPN

WiFi Encryption : WPA/WPA2/WPA3 Personal WPA/WPA2/WPA3 Enterprise Open System & OWE

WPS

Let's Encrypt

DNS-over-TLS

SSH

Security Scan

Firewall

• Maximum Firewall Keyword Filter : 64

• Maximum Firewall Network Service Filter : 32

• Maximum Firewall URL Filter : 64

AiProtection

AiProtection

• Router Security Assessment

• Malicious Site Blocking

• Two-Way IPS

• Advertisement Blocking

• Tracker Blocking

VPN

Instant Guard

VPN Client L2TP

VPN Client Open VPN

VPN Client PPTP

VPN Client WireGuard

VPN Server IPSec

VPN Server Open VPN

VPN Server PPTP

VPN Server WireGuard

VPN Fusion

Traffic Control

Adaptive QoE

• Bandwidth Limiter

-- Maximum Bandwidth Limiter Rule : 32

Traffic Monitor

• Real-time Traffic Monitor

• Wired Traffic Monitor

• Wireless Traffic Monitor

Traffic Analyzer

• Traffic Analysis Period : Daily, Weekly, Monthly

• Website History

WAN

Internet Connection Type :

• PPPoE

• PPTP

• L2TP

• Automatic IP

• Static IP

• IPSec

Dual WAN

3G / 4G LTE Dongle

4G / 5G Auto Mobile Tethering

Port Forwarding

• Maximum Port Forwarding Rule : 64

Port Triggering

• Maximum Port Triggering Rule : 32

DMZ

DDNS

NAT Passthrough : PPTP, L2TP, IPSec, RTSP, H.323, SIP Passthrough,PPPoE relay

LAN

DHCP Server

IPTV

LAN Link Aggregation

Manually Assign IP Address

• Maximum Manually Assign IP Address Rule : 128

Wake on LAN (WOL)

VLAN

Wireless

MU-MIMO

UTF-8 SSID

WiFi MAC Address Filter

• Maximum MAC Filters : 64

Wireless Scheduler

Wi-Fi Radar

Airtime Fairness

RADIUS Client

Universal Beamforming

Explicit Beamforming

USB application

4G / 5G Auto Mobile Tethering

File System :

• HFS+

• NTFS

• vFAT

• ext2

• ext3

• ext4

Safely Remove Disk

Media Server

Samba Server

FTP Server

Shared Folder Privileges

User Interface

WEB: ASUSWRT

APP: ASUS Router APP

Operating system : ASUSWRT

Administration

Configuration Backup and Restore

Diagnosis Tools

Feedback System

System Log

New Device Connect Notification

Login Captcha

Connection Diagnosis

Auto Firmware Update
