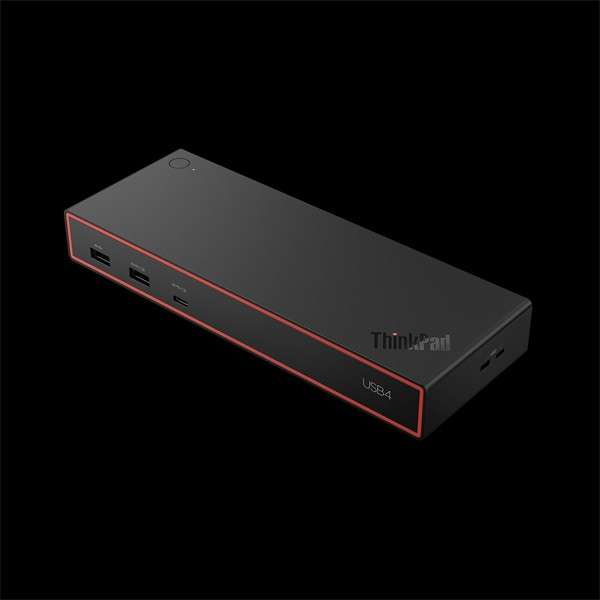

LENOVO ThinkPad Dock - USB4 Dock 5000

• Details
• Data
• Reviews

Details

Feature

Product Description

Designed to enhance everyday productivity, the Lenovo™ ThinkPad® USB4 Dock 5000 is the Successor of our famous Universal USB-C Dock equipped with cutting edge USB4 Technology, The dock can connect to your laptop with 40Gbps bandwidth USB4 upstream connectivity, that allows you to extend your monitor setup with more pixels and higher refresh rates. It can output 65W charge power to your laptop with 100W power adapter, or you can choose a 135W power adapter to boost the charge power up to 100W to you laptop.

Top Features

• The ThinkPad® USB4 Dock 5000 with the latest USB4 technology, makes the connectivity performance quadrupled compare to USB-C 3.2 Gen 2, with up to 40 Gbps bandwidth, you can have up to either one Ultra-High Resolution 8K 60Hz Displays or two 4K 144Hz High Refresh Rate monitor setup to fully extend your Lenovo laptop to a compute platform with all different kinds of Peripheral Devices. It supports PD 3.1 and output up to 100W to give a fast charge to your laptop, you can expand the potential of your workspace with ease
• It is also a Universal Compatible Dock a cross different Operating System

Tech Specs

USB Ports	Front: 2 x USB-A 3.2 Gen 2(1 AOU, 12W) 1 x USB-C 3.2 Gen 2, AOU 7.5W Back: 2 x USB-A 3.2 Gen 2 4.5W 1 x USB-C 3.2 Gen 2 FullFunction 7.5W
Packed Dimensions (L x D x H)	240 mm x 145 mm x 77 mm / 9.45 inches x 5.71 inches x 3.03 inches
Packed Weight	1035 g / 2.28 lbs
JAN	4573681213404
EAN	0195892132486
UPC	195892132486
Warranty Type	Customer Replaceable Unit
Warranty Period	3 Year
Maximum Relative Humidity (%)	95% (no Condensation)
Minimum Relative Humidity (%)	20%
Maximum Operating Temperature	40?
Minimum Operating Temperature	0?
Package Type	Brown Box
Shipment Group	1 x ThinkPad USB4 Smart Dock with integrated 1m USB4 cable 1 x 100W Power adapter 1 x Power cord 1 x Setup poster 1 x Warranty poster
Product Weight	470 g / 1.04 lbs
Height	31.5 mm / 1.24 inches
Depth	80 mm / 3.15 inches
Length	218 mm / 8.58 inches
Driver Needed	Yes
Supported OS	win11 macOS Sonoma macOS Sequoia
Agency Approvals	FCC/ICES CE KCC RCM BSMI VCCI CB cULus EAC TUV- Mark LoA Ukraine DoC NOM
Color	Eclipse Black
Power Plug	Slim-tip
Power Button	Yes
Output Power	65W
Power Delivery	Yes
Input Power	100W
Charging Port	DC-IN
Maximum Resolution/Refresh Rate	4 x 3840 x 2160 @60Hz
Max Number of External Monitors	4
Physical Security Feature	1 x NanoSaver lock slot 1 x MicroSaver lock slot
Ethernet	1 x Gigabbit Ethernet
Audio Ports	No
Video Ports	1 x HDMI 2.1 2 x DP 1.4 1 x USB-C full function video port
Brand	ThinkPad

Compatibility

Operating System

OS Independent

Compatible Machines

Description	ID	Footnote
ThinkPad P14 Series-P14s AMD G5	21ME	Must attach Notebook AC power adapter to system directly to get enough power charging. P1W45M1
	21MF	Must attach Notebook AC power adapter to system directly to get enough power charging. P1W45M1
ThinkPad T14 Series-T14 AMD G5	21MC	P1W45M1. PXE boot supported. Wake On  LAN from Hibernation,Power-Off mode.MAC address pass through
	21MD	P1W45M1. PXE boot supported. Wake On  LAN from Hibernation,Power-Off mode.MAC address pass through
ThinkPad T14 Series-T14 AMD G6	21QJ	P1W45M1. PXE boot supported. Wake On  LAN from Hibernation,Power-Off mode.MAC address pass through
	21QK	P1W45M1. PXE boot supported. Wake On  LAN from Hibernation,Power-Off mode.MAC address pass through
ThinkPad T14 Series-T14 G5	21ML	P1W45M1. PXE boot supported. Wake On  LAN from Hibernation,Power-Off mode.MAC address pass through
	21MM	P1W45M1. PXE boot supported. Wake On  LAN from Hibernation,Power-Off mode.MAC address pass through
ThinkPad T14 Series-T14s AMD G6	21TB	P1W45M1. PXE boot supported. Wake On  LAN from Hibernation,Power-Off mode.MAC address pass through
	21TC	P1W45M1. PXE boot supported. Wake On  LAN from Hibernation,Power-Off mode.MAC address pass through
ThinkPad T14 Series-T14s G5	21LS	P1W45M1. PXE boot supported. Wake On  LAN from Hibernation,Power-Off mode.MAC address pass through
	21LT	P1W45M1. PXE boot supported. Wake On  LAN from Hibernation,Power-Off mode.MAC address pass through
ThinkPad T16 Series-T16 AMD G4	21QN	P1W45M1. PXE boot supported. Wake On  LAN from Hibernation,Power-Off mode.MAC address pass through
	21QQ	P1W45M1. PXE boot supported. Wake On  LAN from Hibernation,Power-Off mode.MAC address pass through
ThinkPad T16 Series-T16 G3	21MN	P1W45M1. PXE boot supported. Wake On  LAN from Hibernation,Power-Off mode.MAC address pass through
	21MQ	P1W45M1. PXE boot supported. Wake On  LAN from Hibernation,Power-Off mode.MAC address pass through
ThinkPad X1 series-X1 2-in-1 G10	21NU	P1W45M1. PXE boot supported. Wake On  LAN from Hibernation,Power-Off mode.MAC address pass through
	21NV	P1W45M1. PXE boot supported. Wake On  LAN from Hibernation,Power-Off mode.MAC address pass through
	21Q0	P1W45M1. PXE boot supported. Wake On  LAN from Hibernation,Power-Off mode.MAC address pass through
	21Q1	P1W45M1. PXE boot supported. Wake On  LAN from Hibernation,Power-Off mode.MAC address pass through
ThinkPad X1 series-X1 2-in-1 G9	21KE	P1W45M1. PXE boot supported. Wake On  LAN from Hibernation,Power-Off mode.MAC address pass through
	21KF	P1W45M1. PXE boot supported. Wake On  LAN from Hibernation,Power-Off mode.MAC address pass through
ThinkPad X1 series-X1 Carbon G12	21KC	P1W45M1. PXE boot supported. Wake On  LAN from Hibernation,Power-Off mode.MAC address pass through
	21KD	P1W45M1. PXE boot supported. Wake On  LAN from Hibernation,Power-Off mode.MAC address pass through
ThinkPad X1 series-X1 Carbon G13	21NS	P1W45M1. PXE boot supported. Wake On  LAN from Hibernation,Power-Off mode.MAC address pass through
	21NT	P1W45M1. PXE boot supported. Wake On  LAN from Hibernation,Power-Off mode.MAC address pass through
	21NX	P1W45M1. PXE boot supported. Wake On  LAN from Hibernation,Power-Off mode.MAC address pass through
	21NY	P1W45M1. PXE boot supported. Wake On  LAN from Hibernation,Power-Off mode.MAC address pass through
ThinkPad X13 series-X13 2-in-1 G5	21LW	P1W45M1. PXE boot supported. Wake On  LAN from Hibernation,Power-Off mode.MAC address pass through
	21LX	P1W45M1. PXE boot supported. Wake On  LAN from Hibernation,Power-Off mode.MAC address pass through
ThinkPad X13 series-X13 AMD G6	21RM	P1W45M1. PXE boot supported. Wake On  LAN from Hibernation,Power-Off mode.MAC address pass through
	21RN	P1W45M1. PXE boot supported. Wake On  LAN from Hibernation,Power-Off mode.MAC address pass through
ThinkPad X13 series-X13 G5	21LU	P1W45M1. PXE boot supported. Wake On  LAN from Hibernation,Power-Off mode.MAC address pass through
	21LV	P1W45M1. PXE boot supported. Wake On  LAN from Hibernation,Power-Off mode.MAC address pass through
ThinkPad X13 series-X13 G6	21RK	P1W45M1. PXE boot supported. Wake On  LAN from Hibernation,Power-Off mode.MAC address pass through
	21RL	P1W45M1. PXE boot supported. Wake On  LAN from Hibernation,Power-Off mode.MAC address pass through

Data

Listaár:

77 495 HUF

Gyártó:

LENOVO-COM

Gyártói cikkszám:

40BF0100EU

EAN:

0195892132486

Garancia:

12 hónap

EAN:

0195892132486

Garancia (hónap):

12

Típus:

Dokkoló

Termék gyártója:

LENOVO-COM

KSH szám:

8471800000

Weight:

1,08 kg/db
