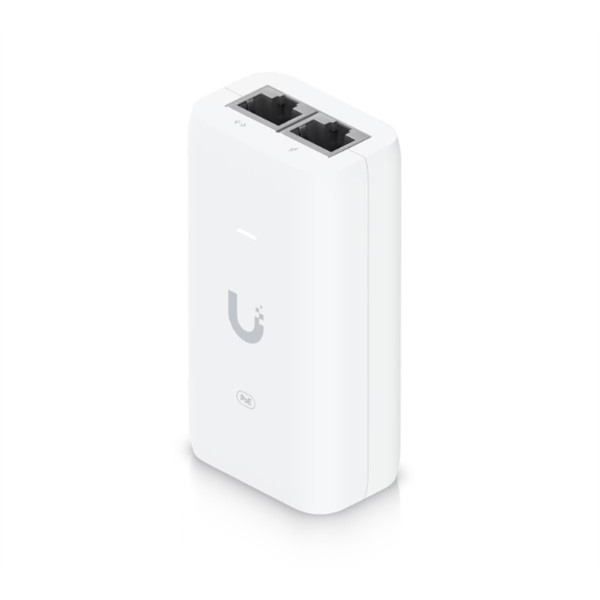

UBiQUiTi POE Adapter 2x1000Mbps, 15W - U-POE

• Details
• Data
• Reviews

Details

Dimensions

86 x 46 x 33 mm (3.4 x 1.8 x 1.3")

Weight

100 g (3.5 oz)

Output Voltage

48V DC @ 0.32A

Rated Voltage

100—240V AC @ 50/60Hz

LAN Activity Indicator

—

Gigabit LAN Port

?

Remote Reset Capability

—

Reset Button

—

2-pair Powering

Pins 4, 5 (+) and 7, 8 (-)

AC Connector

IEC-320 C6

Clamping Protection

11V Data, 60V Power

Data In / PoE

RJ45 Shielded Socket

Input Current

500mA Max.

Inrush Current

<100A peak at 25°C

Efficiency

84.25+%

Switching Frequency

65 kHz

Output Ripple

200mV pp

Line Regulation

≤ 3%

Load Regulation

≤ 5%

Max. Surge Discharge

1500A (8/20 μs) power

Peak Pulse Current

36A (10/1000 μs) data

Response Time

<1 ns

Shunt Capacitance

<5 pF data

Surge Protection

Difference and common mode

Ambient Storage Temperature

-30 to 70°C (-22 to 158° F)

Ambient Operating Temperature

0 to 40° C (32 to 104° F)

Ambient Operating Humidity

10 to 95% noncondensing

NDAA Compliant

?

Certifications

CE, FCC, IC, UL, CCC

Data

Listaár:

3 188 HUF

Gyártó:

UBIQUITI

Gyártói cikkszám:

U-POE

EAN:

817882024976

Garancia:

12 hónap

EAN:

817882024976

Garancia (hónap):

12

Termék gyártója:

UBIQUITI

Gyártó:

UBIQUITI

KSH szám:

8473302000

Weight:

210 g/db

Reviews

Be the first to write a review!

Write a review
