ASUS Wireless Router Dual Band BE3600 1xWAN(2.5Gbps) + 3xLAN(1000Mbps), RT-BE50

Model

RT-BE50

Network Standard

IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
WiFi 6 (802.11ax)
WiFi 7 (802.11be)
IPv4
IPv6

Product Segment

BE3600 ultimate BE performance : 688+2882 Mbps

WiFi Data Rate

802.11a : up to 54 Mbps
802.11b : up to 11 Mbps
802.11g : up to 54 Mbps
WiFi 7 (802.11be) (2.4GHz): up to 688 Mbps
WiFi 7 (802.11be) (5GHz): up to 2882 Mbps

Antenna

External antenna x 4

Transmit / Receive

2.4GHz 2x2
5GHz 2x2

Processor

Quad-core processor

Memory

128 MB Flash
256 MB RAM

Boosts Speed

OFDMA (Orthogonal Frequency Division Multiple Access)
Beamforming: standard-based and universal
4096-QAM high data rate
20/40/80/160 MHz bandwidth

Operating Frequency

2.4GHz / 5GHz
2.4 GHz
5 GHz

Operating Mode

Wireless router mode
Access point mode
Media bridge mode
Wireless Router Mode
AiMesh Node Mode
Range Extender Mode
Access Point Mode
Media Bridge Mode
Repeater Mode

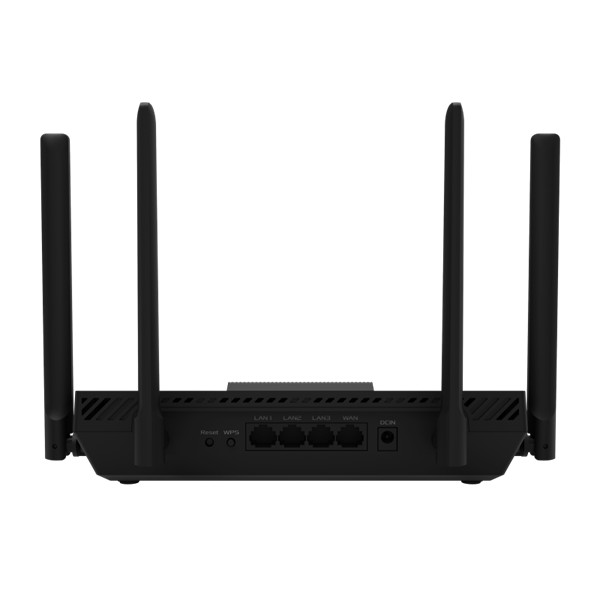

I/O Ports

1x 2.5G for WAN,
3x 1G for LAN,

Buttons

WPS Button, Reset Button

LED Indicator

Power x 1

Power Supply

AC Input : 100V~240V (50~60Hz)
DC Output : 12 V with max. 1.5 A current

Package Content

RT-BE50
RJ-45 cable
Power adapter
Quick Start Guide
Warranty card

Product Weight (g)

450g

Product Dimensions

261 x 156 x 50 mm

AiMesh

AiMesh
• Primary AiMesh Router
• AiMesh Node

Parental Control

"Allow you to block access to unwanted websites and apps."
Web & Apps Filters
Time Scheduling
Safe Browsing
Customized Internet Schedule

Guest Network

"The Guest Network provides Internet connection for guests but restricts access to your local network."
Support Guest Network
• Maximum Guest Network Rule : 2.4GHz x3, 5GHz x3
Guest Network Connection Time Limit

Security

VPN
WPS support, WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise
WPS
Let's Encrypt
DNS-over-TLS
SSH
Security Scan
Firewall
• Maximum Firewall Keyword Filter : 64
• Maximum Firewall Network Service Filter : 32
• Maximum Firewall URL Filter : 64

VPN

Instant Guard
VPN Client L2TP
VPN Client Open VPN
VPN Client PPTP
VPN Client WireGuard
VPN Server IPSec
VPN Server Open VPN
VPN Server PPTP
VPN Server WireGuard
VPN Fusion

Traffic Control

• Bandwidth Monitor
• Bandwidth Limiter
-- Maximum Bandwidth Limiter Rule : 32
Traditional QoS
-- Maximum Traditional QoS Rule : 32
Traffic Monitor
• Real-time Traffic Monitor
• Wired Traffic Monitor
• Wireless Traffic Monitor
Traffic Analyzer
• Traffic Analysis Period : Daily, Weekly, Monthly
• Website History

WAN

Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP
Port forwarding
• Maximum Port Forwarding Rule : 64
Port triggering
• Maximum Port Triggering Rule : 32
DMZ
DDNS
NAT Passthrough : PPTP Pass-Through, L2TP Pass-Through, IPSec Pass-Through, RTSP Pass-Through, H.323 Pass-Through, SIP Pass-Through, PPPoE relay

LAN

DHCP Server
IGMP Snooping
IPTV
Manually Assign IP Address
• Maximum Manually Assign IP Address Rule : 64
Wake on LAN (WOL)

Wireless

MU-MIMO
UTF-8 SSID
WiFi MAC Address Filter
• Maximum MAC Filters : 64
Wireless Scheduler
Airtime Fairness
RADIUS Client
Universal Beamforming
Explicit Beamforming

User Interface

WEB: ASUSWRT
APP: ASUS Router APP

Administration

Configuration Backup and Restore
Diagnosis tools
Feedback System
System Log
New Device Connect Notification
Login Captcha
Connection Diagnosis
Auto Firmware Update
