UBiQUiTi Wireless Access Point DualBand 4x1000Mbps, 5,3Gbps, 4x4 MU-MIMO, POE nélkül, Falra rögzíthető - U6-IW

• Details
• Data
• Reviews

Details

Mechanical
Dimensions	139.7 x 96 x 31.2 mm (5.5 x 3.8 x 1.3")
Weight	460 g (1 lb)
Enclosure material	Plastic, aluminum
Mount material	Aluminum
Hardware
Networking interface	(1) Data-in: GbE RJ45 port (4) Data-out: GbE RJ45 ports
Management interface	Ethernet Bluetooth
PoE interface	(1) PoE in (PoE output not used) (1) PoE out (Requires a PoE+ switch)
Power method	PoE PoE+ (Required for PoE output)
Power supply	UniFi PoE switch 48V, 0.5A PoE adapter (Optional)
Max. power consumption	13W (Excluding PoE output)
Max PoE wattage per port by PSE	15.4W* *Requires a PoE+ switch
Voltage range PoE mode	44—57V DC
Max. TX power 2.4 GHz 5 GHz 6 GHz	22 dBm 26 dBm –
MIMO 2.4 GHz 5 GHz 6 GHz	2 x 2 (DL/UL MU-MIMO) 4 x 4 (DL/UL MU-MIMO) –
Max. data rate 2.4 GHz 5 GHz 6 GHz	573.5 Mbps (BW40) 4.8 Gbps (BW160) –
Antenna gain 2.4 GHz 5 GHz 6 GHz	5 dBi 5.9 dBi –
LED	White/blue
Button	Factory reset

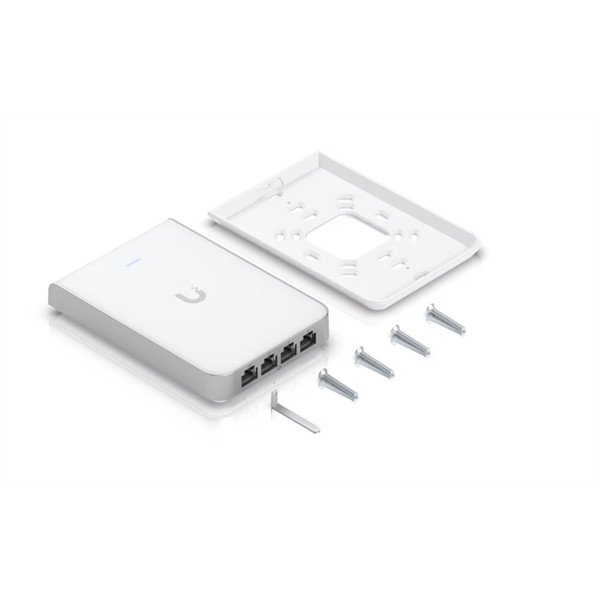

Mounting	Wall (Included)
Ambient operating temperature	-30 to 60° C (-22 to 140° F)
Ambient operating humidity	5 to 95% noncondensing
Certifications	CE, FCC, IC
Software
WiFi standards	802.11a/b/g/n/ac/ax (WiFi 6)
Wireless security	WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
BSSID	8 per radio
VLAN	802.1Q
Advanced QoS	Per-user rate limiting
Guest traffic isolation	Supported
Concurrent clients	300+
Zero-wait DFS	Yes* *Supported with upcoming firmware versions.
Supported Data Rates
802.11a	6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b	1, 2, 5.5, 11 Mbps
802.11g	6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n	6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40)
802.11ac	6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)
802.11ax (WiFi 6)	7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)
Application Requirements
UniFi Network	Version 6.4.52 and later

Data

Listaár:

80 264 HUF

Gyártó:

UBIQUITI

Gyártói cikkszám:

U6-IW

EAN:

810010077493

Garancia:

24 hónap

EAN:

810010077493

Garancia (hónap):

24

Termék gyártója:

UBIQUITI

Kültéri kivitel:

Nincs

Gyártó:

UBIQUITI

KSH szám:

8473302000

Weight:

630 g/db
