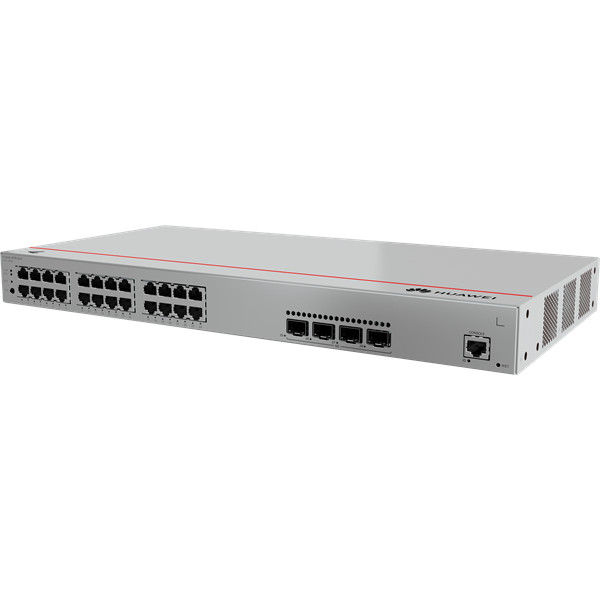

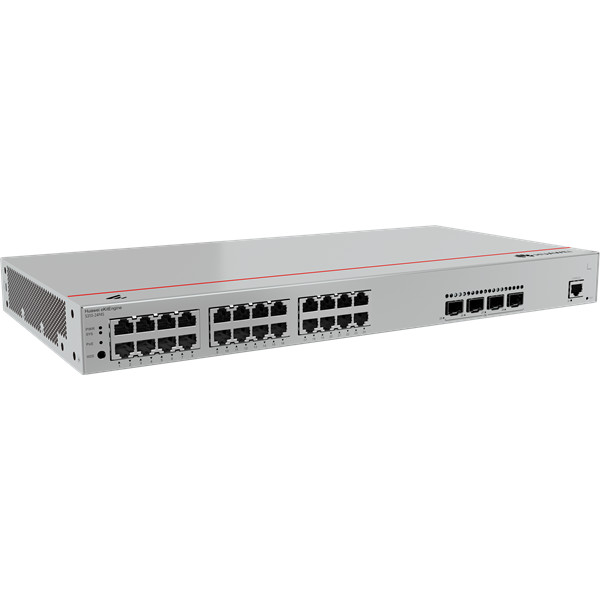

Huawei eKit Switch 24x1000Mbps (400W POE+) + 4x1GE (SFP) + 1konzol port, iStack, Layer2+ managed Rackes - S310-24P4S

576,59 $

Huawei eKit Switch 24x1000Mbps (400W POE+) + 4x1GE (SFP) + 1konzol port, iStack, Layer2+ managed Rackes - S310-24P4S

Name: Huawei eKit Switch 24x1000Mbps (400W POE+) + 4x1GE (SFP) + 1konzol port, iStack, Layer2+ managed Rackes - S310-24P4S
Brand: Huawei eKit
SKU: HU350229
Price: 576.59 USD
Availability: InStock

In stock 9 db

576,59 $

Points earned after purchase: 28,83 $

Huawei eKit Switch 24x1000Mbps (400W POE+) + 4x1GE (SFP) + 1konzol port, iStack, Layer2+ managed Rackes - S310-24P4S

Details

First supported version	V600R022C10
Integrated fixed device	Y
Dimensions without packaging (H x W x D) [mm(in.)]	Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.66 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 227.0 mm (1.72 in. x 17.4 in. x 8.94 in.)
Dimensions with packaging (H x W x D) [mm(in.)]	90.0 mm x 550.0 mm x 360.0 mm (3.54 in. x 21.65 in. x 14.17 in.)
Chassis height [U]	1
Installation type	Rack mounting,Desk mounting,Wall mounting
Weight without packaging [kg(lb)]	2.92 (6.44)
Weight with packaging [kg(lb)]	3.79 (8.36)
Typical power consumption [W]	40.07
Typical heat dissipation [BTU/hour]	136.72
Maximum power consumption [W]	- Without PoE: 47.1 W - Full PoE load: 491.66 W (PoE: 400 W)
Maximum heat dissipation [BTU/hour]	- Without PoE: 160.71 - Full PoE load: 1677.59
Static power consumption [W]	30.82
100% power consumption [W]	40.54
MTBF [year]	60.18
MTTR [hour]	2
Availability	>0.99999
Noise at normal temperature (acoustic power) [dB(A)]	49.3
Noise at high temperature (acoustic power) [dB(A)]	63
Noise at normal temperature (acoustic pressure) [dB(A)]	37.3
Number of card slots	0
Number of power slots	0
Number of fans modules	2
Maximum number of physical ports on the entire device	28
Maximum number of 100GE ports	0
Maximum number of 40GE ports	0
Maximum number of 25GE ports	0
Maximum number of 10GE ports	0
Maximum number of 5GE ports	0
Maximum number of 2.5GE ports	0
Maximum number of GE ports	28
Maximum number of FE ports	24
Dedicated stack port	Not supported
Redundant power supply	Not supported
Long-term operating temperature [°C(°F)]	-5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5905.44 ft.)
Restriction on the operating temperature variation rate [°C(°F)]	When the altitude is 1800–5000 m (5906–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). Devices cannot start when the temperature is lower than 0°C (32°F).
Storage temperature [°C(°F)]	–40°C to +70°C (–40°F to +158°F)
Long-term operating relative humidity [RH]	5% RH to 95% RH (non-condensing)
Long-term operating altitude [m(ft.)]	0–5000 m (0–16404 ft.)
Storage altitude [m(ft.)]	0-5000 m (0-16404 ft.)
Power supply mode	AC built-in
Rated input voltage [V]	AC input: 100–240 V AC; 50/60 Hz
Input voltage range [V]	AC input: 90–290 V AC; 45–65 Hz
Maximum input current [A]	6 A
CPU	1.1 GHz, 2 cores
Memory	2 GB
Flash memory	1 GB in total. To view the available flash memory size, run the display version command.
Console port	RJ45
Eth Management port	Not supported
USB	Not supported
Hardware real-time power detection	Not supported
Dying gasp	Supported
RTC	Not supported
RPS input	Not supported
Complete device sleeping	Not supported
Service port surge protection [kV]	Common mode: ±7 kV
Power supply surge protection [kV]	Differential mode: ±6 kV; common mode: ±6 kV
Ingress protection level (dustproof/waterproof)	IP20
Types of fans	Built-in
Heat dissipation mode	Air cooling for heat dissipation, intelligent fan speed adjustment
Airflow direction	Air intake from left and front, air exhaustion from right
PoE	Supported
Maximum PoE power consumption [W]	400
PoE+ power interfaces	24
PoE++ power interfaces	-
Full load PoE power consumption 15.4W (802.3af)	24
Full load PoE power consumption 30W (802.3at)	13
Full load PoE++ power consumption 60W (802.3bt)	-
Full load PoE++ power consumption 90W (802.3bt)	-
Certification	EMC certification Safety certification Manufacturing certification

Data

Listaár:

167 401 HUF

Gyártó:

Huawei eKit

Gyártói cikkszám:

98012201

EAN:

6901443427628

Garancia:

36 hónap

EAN:

6901443427628

Garancia (hónap):

Rack-be szerelhető:

Van

Switch típus:

Fixed port

Portok száma:

Port típusa:

1Gb Réz

Switching kapacitás:

260

PoE (Power over Ethernet):

Van

Termék gyártója:

Huawei eKit

SFP port:

Gyártó:

Huawei eKit

KSH szám:

8517620000

Weight:

3,75 kg/db
