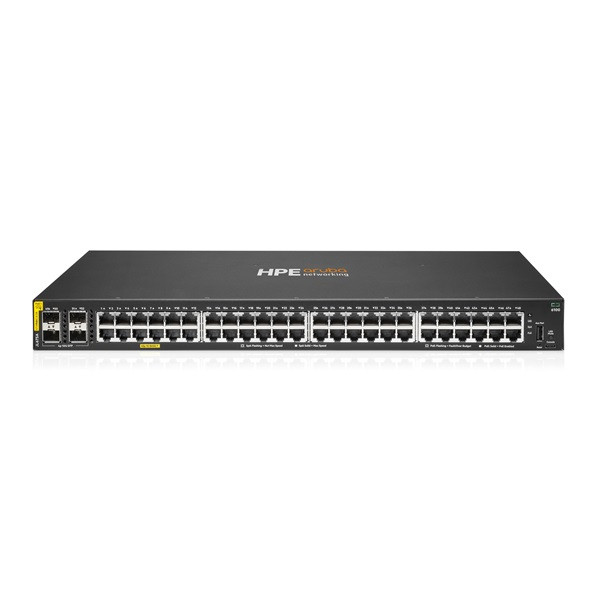

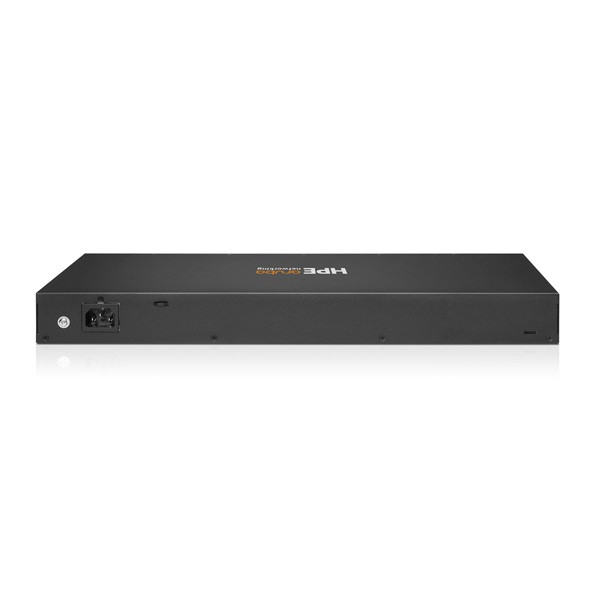

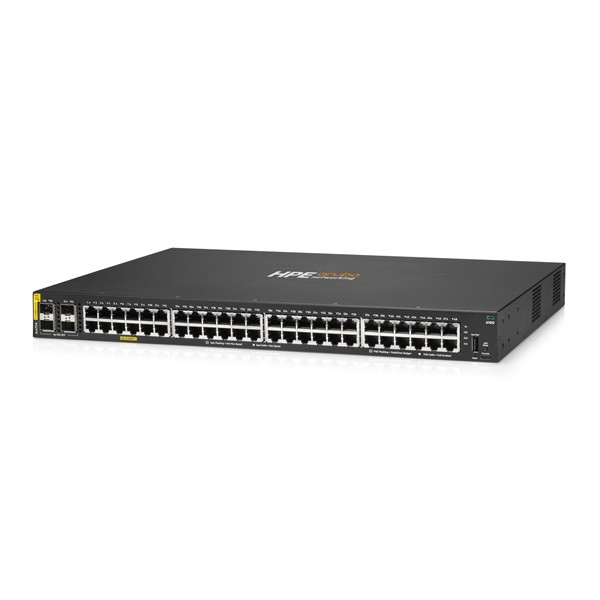

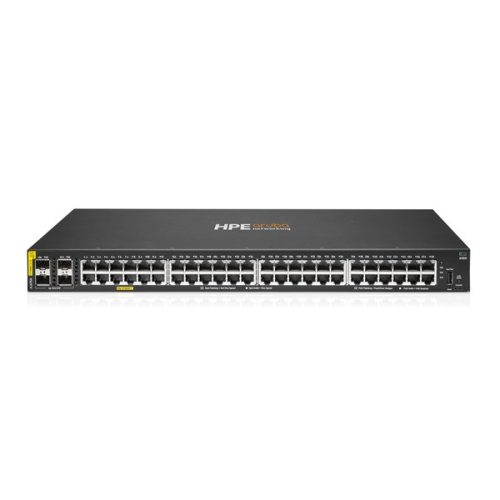

HPE Aruba 6100 48G CL4 4SFP+ Swch

• Details
• Data
• Reviews

Details

Product	6100 48G CL4 PoE 4SFP+ 370W
Part Number	JL675A
Switch Type	Fixed Port
Network OS	ArubaOS-CX
Routing / Switching	Layer 2 Only
Management	Fully Managed
Included Accessories
Included Accessories	N/A
Physical Properties
Dimensions	17.4(w) x 12(d) x 1.73(h) in. (44.2 x 30.48 x 4.39 cm)
Weight	11.07 lb (5.02 kg)
Port Types
LAN Ports	48x ports 10/100/1000BASE-T Ports
Dual Personality Ports	N/A
1/2.5/5/10GbE	N/A
SFP Ports	N/A
SFP+ Ports	4x 1G/10G SFP ports
SFP28 Ports	N/A
SFP56 Ports	N/A
XFP Ports	N/A
X2 Ports	N/A
CX4 Ports	N/A
10GBASE-T Ports	N/A
QSFP+ Ports	N/A
QSFP28 Ports	N/A
QSFP56 Ports	N/A
QSFP-DD  Ports	N/A
Module Slots	N/A
Console Port	1x USB-C Console Port 1x USB Type-A Host port
Power Supplies
Power supply slots	Fixed power supply
Power supply requirements	N/A
Memory and Processor
Memory and Processor	CPU: Dual Core ARM Cortex A9 @ 1.016 Ghz Memory and Flash: 4GB DDR3 16GB eMMC Packet Buffer: 1MB
Gigabit Module	N/A
10Gb Module	N/A
Management Module	N/A
Fabric Module	N/A
I/O Module	N/A
Mounting
Mounting	Mounts in an EIA-standard 19-inch telco rack or equipment cabinet (rack-mounting kit included); horizontal surface mounting.
Performance
100 Mb Latency	N/A
1000 Mb Latency	N/A
10 Gbps Latency	N/A
40 Gbps Latency	N/A
Throughput	98.6 Mpps
Switching Capacity	176 Gbps
Switch Fabric Speed	N/A
Routing Table Size	512 (IPv4); 512 (IPv6)
MAC Address Table Size	8,192
MACsec Capable Hardware	No
MACsec Software Support	No
MACsec with EAP-TLS	No
MACsec Capable Uplink Ports	No
Electrical Characteristics
Description	N/A
Voltage	100-127 VAC / 200-240 VAC
Current	4.9 A / 2.4 A
Frequency	50/60 Hz
Maximum Power Consumption	Idle: 30.6W Max Power (w/o PoE): 45W Max Power (w/ PoE): 480W
Maximum Heat Dissipation	N/A
PoE power	370W
Notes	N/A
Management
Management	Aruba Central, command-line interface, out-of-band management (RJ-45 Ethernet), out-of-band management (serial RS-232), SNMP Manager, Telnet, FTP, terminal interface (serial RS-232C), modem inteface, IEEE 802.3 Ethernet MIB, Ethernet MIB

Data

Listaár:

766 623 HUF

Gyártó:

HP NW

Gyártói cikkszám:

JL675A

EAN:

190017348001

Garancia:

1188 hónap

EAN:

190017348001

Garancia (hónap):

1188

Termék gyártója:

HP NW

Gyártó:

HP HEWLETT PACKARD

KSH szám:

8517620000

Weight:

6,2 kg/db
