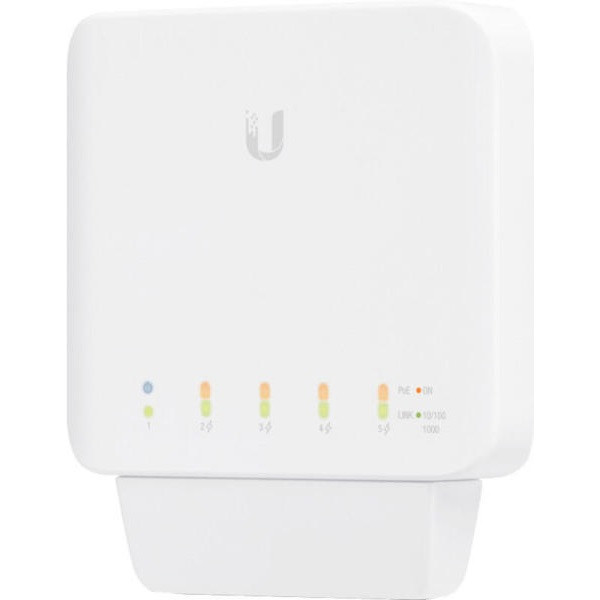

UBiQUiTi Switch 5x1000Mbps (POE+), Menedzselhető, kültéri-beltéri, vízálló - USW-FLEX

• Details
• Data
• Reviews

Details

USW-Flex
Dimensions	122.5 x 107.1 x 28.0 mm (4.82 x 4.22 x 1.10")
Weight	230 g (8.11 oz)

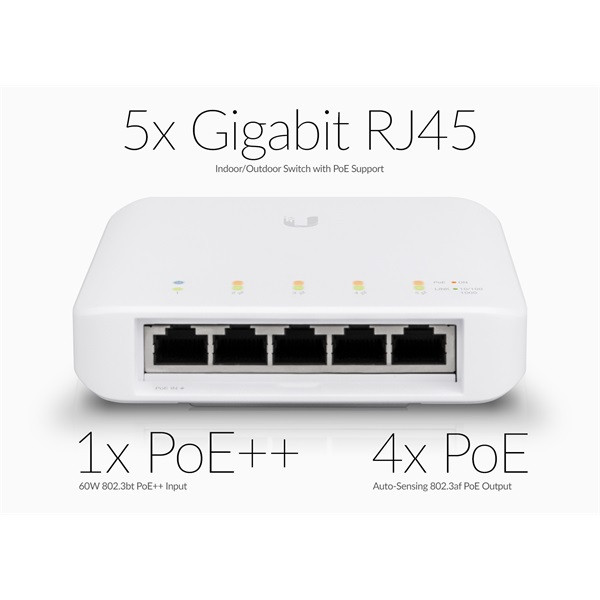

Networking Interfaces	(5) 10/100/1000 Mbps RJ45 Ports
Management Interface	Ethernet In-Band
PoE Out (Ports 2-5)	802.3at (Pins 1, 2+; 3, 6-)
Max Power Consumption (Excluding PoE Output)	5W
Max PoE Wattage Per Port	25W
Total PoE Power Budget Powered by 802.3af Powered by 802.3at Powered by 802.3bt Powered by PoE Adapter (Enabled in Controller)	8W 20W 46W 46W
Voltage Range 802.3af 802.3at/bt	44 - 57V 50 - 57V
LEDs System RJ45 Data Ports	Status PoE; Link/Speed/Activity
ESD/EMP Protection	± 16kV Air, ± 16kV Contact
Operating Temperature 46W PoE Output 25W PoE Output	-40 to 55° C (-40 to 131° F) -40 to 65° C (-40 to 149° F)
Operating Humidity	5 to 95% Noncondensing
Certifications	CE, FCC, IC
Power Method (Port 1)
PoE Type 802.3af/at (Pins 1, 2+; 3, 6-) 802.3bt (Pins 1, 2+; 3, 6- and 4, 5+; 7, 8-) 50V/60W PoE Adapter*	Recommended PoE Source USW-24-PoE (sold separately) USW-Pro-24-PoE (sold separately) PoE Injector, POE-50-60W-WH or POE-50-60W (sold separately)
USW-Flex-Utility**
Dimensions (with Mount)	249 x 218 x 60 mm (9.80 x 8.58 x 2.36")
Weight (with Mount)	740 g (26.10 oz)
USW-Flex-Utility 60W PoE Adapter
Dimensions	118.5 x 63 x 34.7 mm (4.66 x 2.48 x 1.36")
Weight	206 g (7.27 oz)
Output Voltage	54V, 1.11A
Rated Voltage	100-240VAC
Input Current	1.5A (Max.)
Efficiency	> 86%
Output Ripple	200mVpp
Line Regulation	< 1%
Load Regulation	< 3%
4-Pair Powering	Pins 1, 2, 4, 5+ and Pins 3, 6, 7, 8-
Operating Temperature	-20 to 60 ° C (-4 to 140 ° F)
Storage Temperature	-30 to 70 ° C (-22 to 158 ° F)
Operating Humidity	5 to 90%, Noncondensing
Surge Immunity	4kV Difference and Common Mode

* To enable PoE output power, select Power Source PoE Injector in UniFi Application.
** Accessory sold separately.

Data

Listaár:

42 583 HUF

Gyártó:

UBIQUITI

Gyártói cikkszám:

USW-FLEX

EAN:

817882027595

Garancia:

12 hónap

EAN:

817882027595

Garancia (hónap):

12

Rack-be szerelhető:

Nincs

Menedzselhetőség:

Web

Portok száma:

5

Port típusa:

1Gb Réz

Menedzselhető:

Van

PoE (Power over Ethernet):

Van

Termék gyártója:

UBIQUITI

Gyártó:

UBIQUITI

KSH szám:

8473302000

Weight:

230 g/db

Reviews

Be the first to write a review!

Write a review
