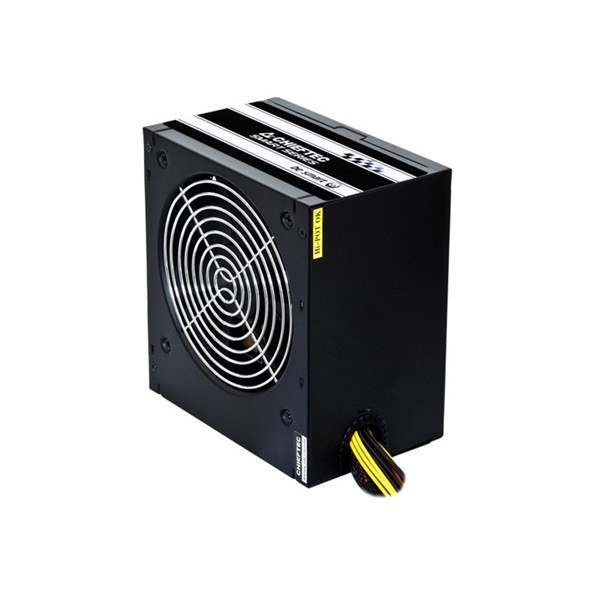

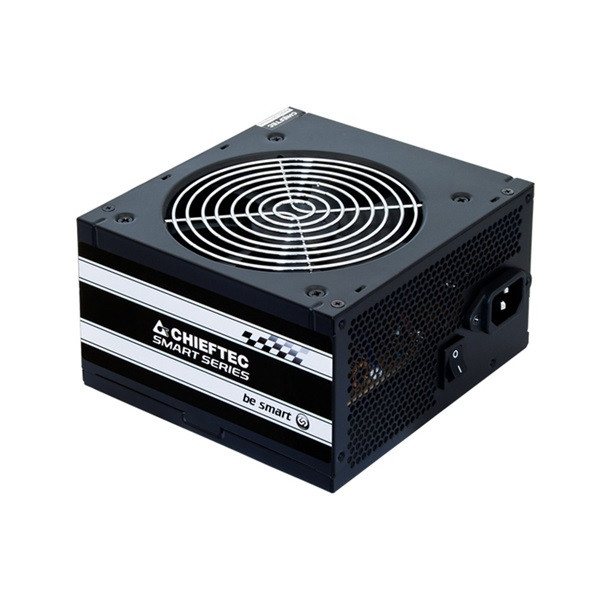

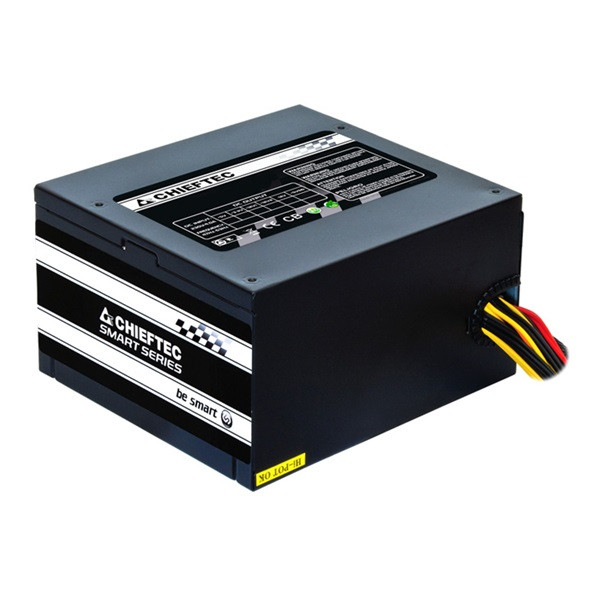

CHIEFTEC Tápegység Smart 700W 80+ Bronze BOX

• Details
• Data
• Reviews

Details

Model	SMART 700W
Article no.	GPS-700A8
EAN code	4710713239579
Weight (without/with package)
AC Input	200-240V / 5.0A
Frequency	47 - 63Hz
+5V	22A
+3,3V	22A
+5V & +3,3V combined	130W
+12V1	54A
+12V2	-
+12V1, +12V2 combined	648W
P.F.	>0,9
-12V	0,3A / 3,6W
+5VSB	2,5A / 12,5W
Maximum Power	700W

Connectors

20+4 PIN ATX	1
8 PIN EPS(4+4)	1
8 PIN PCIe (6+2)	2
SATA	6
MOLEX/FLOPPY	2/1

Cable length (mm)

20+4 PIN ATX	500
8 PIN EPS(4+4)	500
8 PIN PCIe (6+2)	500/150
SATA	2x 500/150/150
MOLEX/FLOPPY	500/150/150

Features

ATX12V Version	ATX 12V 2.3
Efficiency	>85%
Dimension (DxWxH)	140 mm x 150 mm x 87 mm
PFC	Active PFC (0,9)
Fan	120mm silent fan
Security	AFC (Automatic Fan speed Control) OPP (Over Power Protection) OVP (Over Voltage Protection) SCP (Short Circuit Protection) SIP (Surge & Inrush Protection) UVP (Under Voltage Protection)
Warranty	24 Months

Data

Listaár:

18 390 HUF

Gyártó:

CHIEFTEC

Gyártói cikkszám:

GPS-700A8

EAN:

4710713239579

Garancia:

24 hónap

EAN:

4710713239579

Garancia (hónap):

24

Termék gyártója:

CHIEFTEC

Teljesítmény:

700

Hűtés típusa:

Low Noise (12cm)

Gyártó:

CHIEFTEC

KSH szám:

8504408390

Weight:

1,665 kg/db
