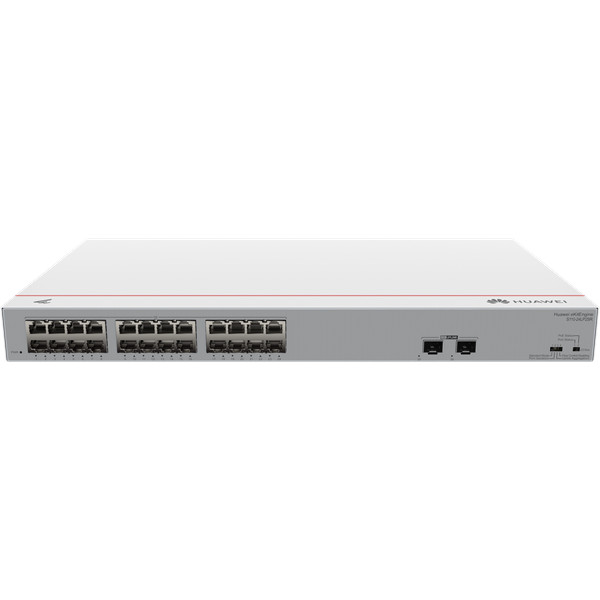

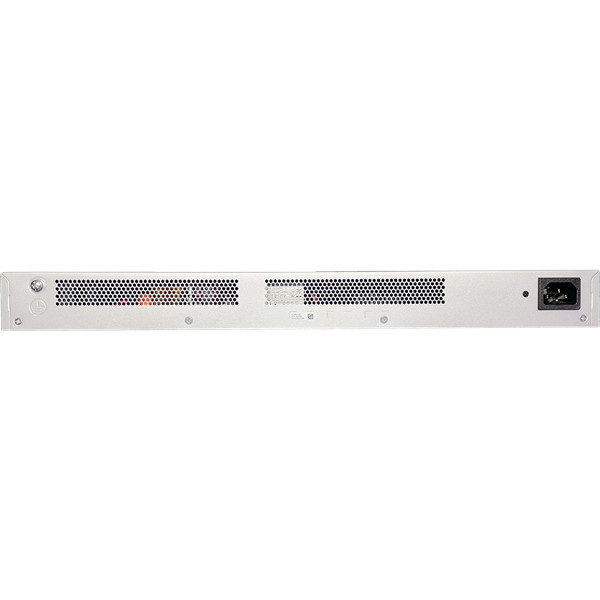

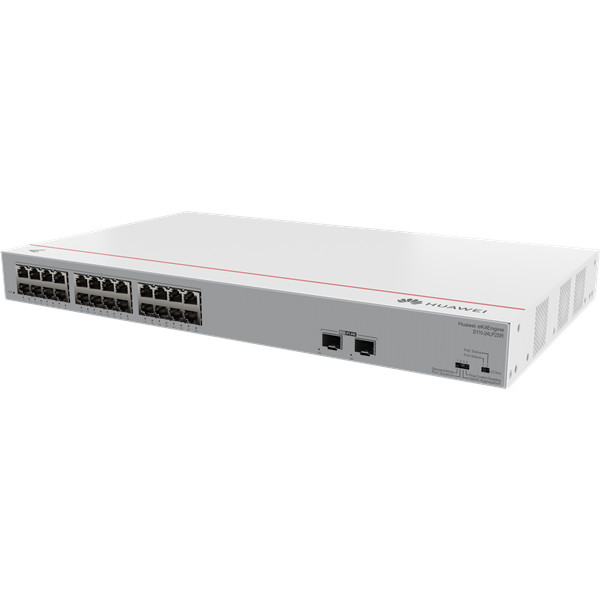

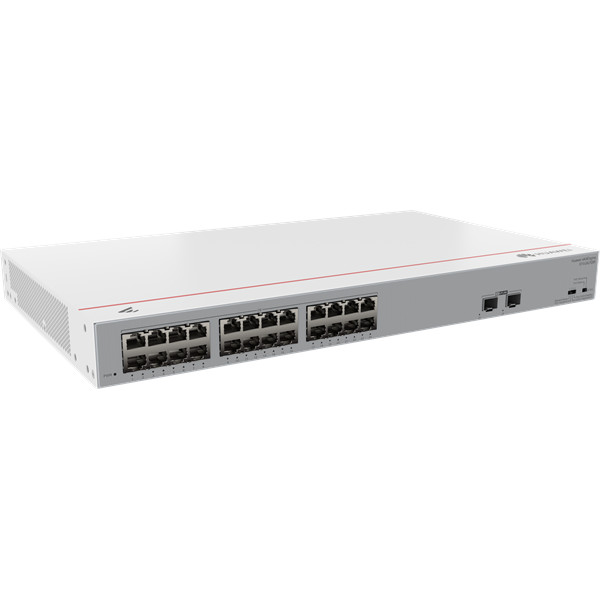

Huawei eKit Switch 24x1000Mbps (124W POE+) + 2x1GE (SFP), Nem menedzselhető, Rack/Asztali - S110-24LP2SR

• Részletek
• Adatok
• Vélemények

Részletek

Integrated fixed device	Y
Dimensions without packaging (H x W x D)	Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 260.0 mm (1.72 in. x 17.40 in. x 10.24 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 267.0 mm (1.72 in. x 17.40 in. x 10.51 in.)
Dimensions with packaging (H x W x D)	90.0 mm x 555.0 mm x 400.0 mm (3.54 in. x 21.85 in. x 15.75 in.)
Chassis height	1
Installation type	Rack mounting,Desk mounting,Wall mounting
Weight without packaging	3.2 (7.05)
Weight with packaging	3.7 (8.16)
Typical power consumption	24
Typical heat dissipation	81.89
Maximum power consumption	Without PoE: 24 W Full PoE load: 165 W (PoE: 124 W)
Maximum heat dissipation	Without PoE: 81.89 Full PoE load: 563
Static power consumption	13
100% power consumption	24
MTBF	42.92
MTTR	2
Availability	>0.99999
Noise at normal temperature (acoustic power)	Noise-free (no fans), < 30
Noise at high temperature (acoustic power)	Noise-free (no fans), < 30
Noise at normal temperature (acoustic pressure)	Noise-free (no fans), < 20
Number of card slots	0
Number of power slots	0
Number of fans modules	0
Maximum number of physical ports on the entire device	26
Maximum number of 100GE ports	0
Maximum number of 40GE ports	0
Maximum number of 25GE ports	0
Maximum number of 10GE ports	0
Maximum number of 5GE ports	0
Maximum number of 2.5GE ports	0
Maximum number of GE ports	26
Maximum number of FE ports	26
Dedicated stack port	Not supported
Redundant power supply	Not supported
Long-term operating temperature	0°C to 40°C (32°F to 104°F) at an altitude of 0-1800 m (0-5906 ft.)
Restriction on the operating temperature variation rate	When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
Storage temperature	–40°C to +70°C (–40°F to +158°F)
Long-term operating relative humidity	5% RH to 95% RH (non-condensing)
Long-term operating altitude	0–5000 m (0–16404 ft.)
Storage altitude	0-5000 m (0-16404 ft.)
Power supply mode	AC built-in
Rated input voltage	AC input: 100–240 V AC; 50/60 Hz
Input voltage range	AC input: 90 V AC to 300 V AC; 47 Hz to 63 Hz
Maximum input current	3 A
CPU	-
Memory	-
Flash memory	-
Console port	Not supported
Eth Management port	Not supported
USB	Not supported
Hardware real-time power detection	Not supported
Dying gasp	Not supported
RTC	Not supported
RPS input	Not supported
Complete device sleeping	Not supported
Service port surge protection	Common mode: ±4 kV
Power supply surge protection	Differential mode: ±6 kV; common mode: ±6 kV
Ingress protection level (dustproof/waterproof)	IP20
Types of fans	None
Heat dissipation mode	Natural heat dissipation
Airflow direction	-
PoE	Supported
Maximum PoE power consumption	124
PoE+ power interfaces	24
PoE++ power interfaces	-
Full load PoE power consumption 15.4W (802.3af)	8
Full load PoE power consumption 30W (802.3at)	4
Full load PoE++ power consumption 60W (802.3bt)	-
Full load PoE++ power consumption 90W (802.3bt)	-
Certification	EMC certification Safety certification Manufacturing certification

Adatok

Listaár:

96 382 HUF

Gyártó:

Huawei eKit

Gyártói cikkszám:

98012198

EAN:

6901443428038

Garancia:

36 hónap

EAN:

6901443428038

Garancia (hónap):

36

Rack-be szerelhető:

Van

Switch típus:

Fixed port

Portok száma:

26

Port típusa:

1Gb Réz

PoE (Power over Ethernet):

Van

Termék gyártója:

Huawei eKit

SFP port:

2

Gyártó:

Huawei eKit

KSH szám:

8517620000

Tömeg:

4,01 kg/db
