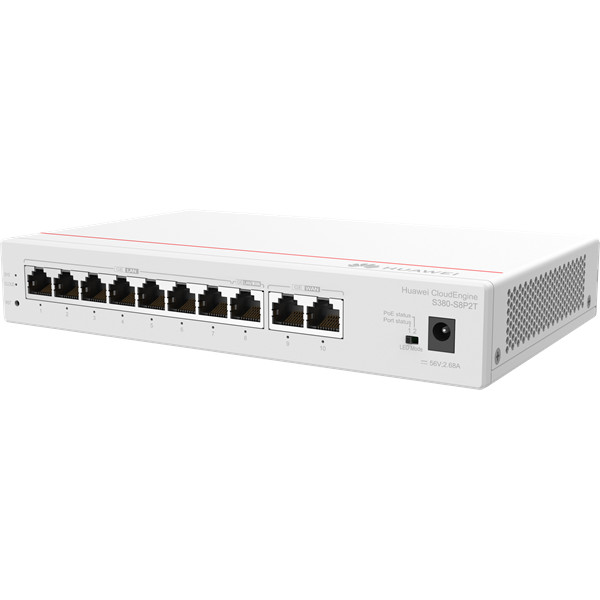

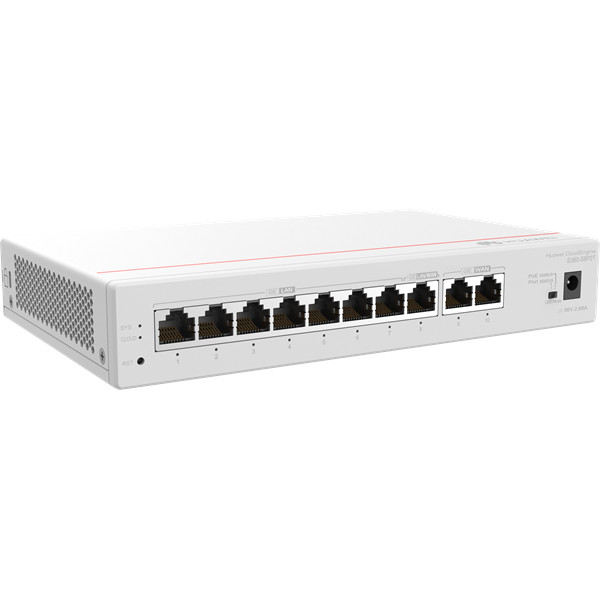

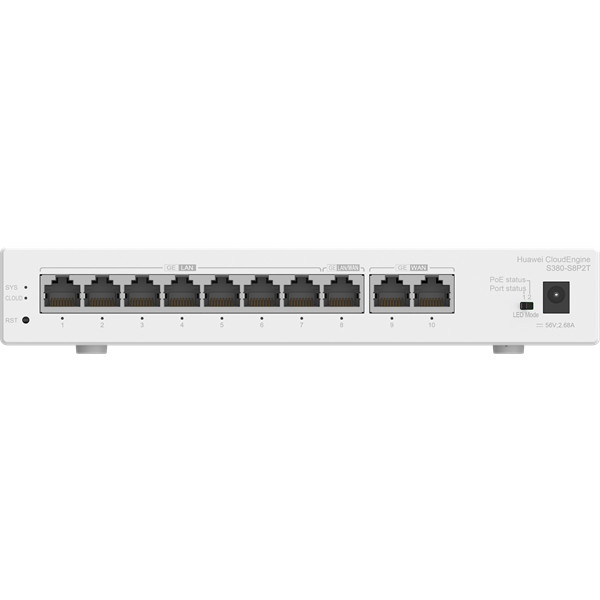

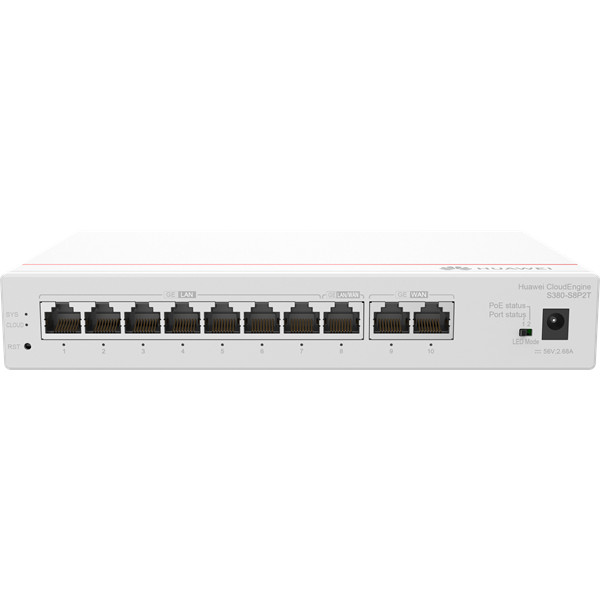

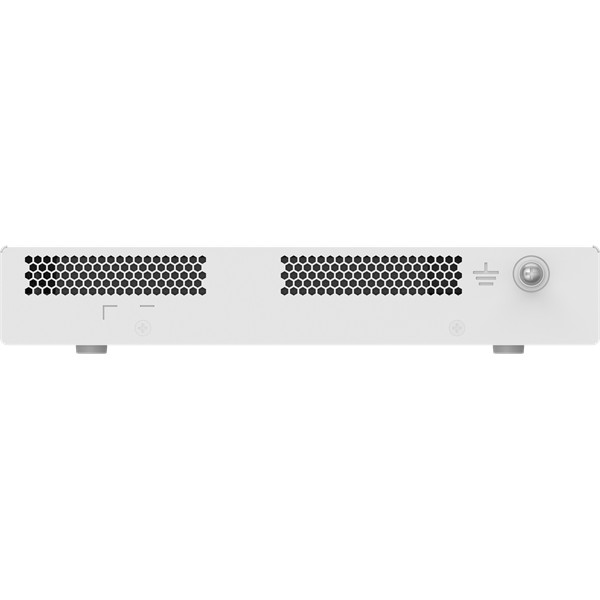

Huawei eKit Engine Gateway 2x1000Mbps (WAN) + 8x1000Mbps (124W POE+), Asztali - S380-S8P2T

200 790 Ft

190 295 Ft

Huawei eKit Engine Gateway 2x1000Mbps (WAN) + 8x1000Mbps (124W POE+), Asztali - S380-S8P2T

Name: Huawei eKit Engine Gateway 2x1000Mbps (WAN) + 8x1000Mbps (124W POE+), Asztali - S380-S8P2T
Brand: Huawei eKit
SKU: HU350273
Price: 190295 HUF
Availability: InStock

Raktáron 3 db

200 790 Ft

190 295 Ft

Kezdete: 2026.05.30 A készlet erejéig

Megtakarítás 10 495 Ft

A vásárlás után járó pontok: 1 903 Ft

Huawei eKit Engine Gateway 2x1000Mbps (WAN) + 8x1000Mbps (124W POE+), Asztali - S380-S8P2T

Részletek

First supported version	V600R022C10
Integrated fixed device	Y
Dimensions without packaging (H x W x D) [mm(in.)]	Basic dimensions (excluding the parts protruding from the body): 35.0 mm x 210.0 mm x 130.0 mm (1.38 in. x 8.27 in. x 5.12 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 35.0 mm x 210.0 mm x 136.3 mm (1.38 in. x 8.27 in. x 5.37 in.)
Dimensions with packaging (H x W x D) [mm(in.)]	150.0 mm x 275.0 mm x 200.0 mm (5.91 in. x 10.83 in. x 7.87 in.)
Chassis height [U]	0.8
Installation type	Desk mounting,Wall mounting
Weight without packaging [kg(lb)]	1.5 (3.31)
Weight with packaging [kg(lb)]	1.8 (3.97)
Typical power consumption [W]	12.4
Typical heat dissipation [BTU/hour]	42.3
Maximum power consumption [W]	145.8 W (PoE: 124 W)
Maximum heat dissipation [BTU/hour]	497.5
Static power consumption [W]	7.53
100% power consumption [W]	12.52
MTBF [year]	65.36
MTTR [hour]	2
Availability	>0.99999
Noise at normal temperature (acoustic power) [dB(A)]	Noise-free (no fans), < 30
Noise at high temperature (acoustic power) [dB(A)]	Noise-free (no fans), < 30
Noise at normal temperature (acoustic pressure) [dB(A)]	Noise-free (no fans), < 20
Number of card slots	0
Number of power slots	0
Number of fans modules	0
Maximum number of physical ports on the entire device	10
Maximum number of 100GE ports	0
Maximum number of 40GE ports	0
Maximum number of 25GE ports	0
Maximum number of 10GE ports	0
Maximum number of 5GE ports	0
Maximum number of 2.5GE ports	0
Maximum number of GE ports	10
Maximum number of FE ports	10
Dedicated stack port	Not supported
Redundant power supply	Not supported
Long-term operating temperature [°C(°F)]	0°C to 40°C (32°F to 104°F) at an altitude of 0-1800 m (0-5906 ft.)
Restriction on the operating temperature variation rate [°C(°F)]	When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
Storage temperature [°C(°F)]	–40°C to +70°C (–40°F to +158°F)
Long-term operating relative humidity [RH]	5% RH to 95% RH (non-condensing)
Long-term operating altitude [m(ft.)]	0–5000 m (0–16404 ft.)
Storage altitude [m(ft.)]	0-5000 m (0-16404 ft.)
Power supply mode	Power adapter
Rated input voltage [V]	Power adapter input: 100–240 V AC; 50/60 Hz Power adapter output: 56 V DC
Input voltage range [V]	Power adapter input: 90–290 V AC; 47–63 Hz
Maximum input current [A]	2.68 A
CPU	Quad-core, 800 MHz
Memory	DDR4: 512 MB
Flash memory	NAND Flash: 512 MB
Storage	-
Console port	Not supported
Eth Management port	LAN port
USB	Not supported
Hardware real-time power detection	Not supported
Dying gasp	Not supported
RTC	Not supported
RPS input	Not supported
Complete device sleeping	Not supported
Service port surge protection [kV]	Common mode: ±4 kV
Power supply surge protection [kV]	Power adapter: ±6 kV in differential mode and ±6 kV in common mode
Ingress protection level (dustproof/waterproof)	IP20
Types of fans	None
Heat dissipation mode	Natural heat dissipation
Airflow direction	-
PoE	Supported
Maximum PoE power consumption [W]	124 W
PoE+ power interfaces	8
PoE++ power interfaces	-
Full load PoE power consumption 15.4W (802.3af)	8
Full load PoE power consumption 30W (802.3at)	4
Full load PoE++ power consumption 60W (802.3bt)	-
Full load PoE++ power consumption 90W (802.3bt)	-
Certification	EMC certification Safety certification Manufacturing certification

Adatok

Listaár:

179 068 HUF

Gyártó:

Huawei eKit

Gyártói cikkszám:

98012180

EAN:

6901443425679

Garancia:

36 hónap

EAN:

6901443425679

Garancia (hónap):

Rack-be szerelhető:

Nincs

Switch típus:

Fixed port

Portok száma:

Port típusa:

1Gb Réz

Switching kapacitás:

PoE (Power over Ethernet):

Van

Termék gyártója:

Huawei eKit

SFP port:

Gyártó:

Huawei eKit

KSH szám:

8517620000

Tömeg:

1,9 kg/db
